BLUE STEEL PACKING STRAPS

Application:The metal band is made from ordinary carbon structured steels viacold-rolled,electric heat and blue.It is applicable for bunlding and packing of wood,paper,cotton spinning,baling hoops,chemical indutry machinery and so on.

Mechanical lproperties:tensile strength σb≥60kg/mm(MPa)≥600,elongation δ5≥3%.

Weight/unit:2 or 3 small coils per bundle,net wight50±2kg .

packing:2 or 3 small coils per bundle,Inner diameter is 200-300mm.

Packing:1.Inner is protect humidity-proof wax paper.Medium is plastic film.outer is sackcloth packing.2.Inner and outer are tile edge compound paper packing.The cargo will be delivered in pallets,each pallet is about one metric ton.Besides the above sizes,other particular spexifications,properties and packing can also be manufactured as per customers' orders.

BWG
thickness
width
inch
mm
inch
mm
18
0.049
1.2
3/4-1
19-32
19
0.042
1.0
3/4-1
19-32
20
0.035
0.90
3/4-1
19-32
21
0.032
0.80
3/4-1
19-32
22
0.028
0.70
5/8-1
16-19
23
0.025
0.65
5/8-1
16-19
24
0.022
0.60
5/8-3/4
16-19
25
0.020
0.50
5/8-3/4
16-19
26
0.018
0.45
1/2-5/8
12.7-16
27
0.016
0.40
1/2-5/8
12.7-16
28
0.014
0.36
1/2-5/8
12.7-16

Blue Steel Packing Strips is made from ordinary carbon structured and high quality carbon structured steels via cold-rolled,electric heat and blue.It is applicable for bundling and packing of wood,paper,cotton spinning,glass,stone,steels,weld tube and so on large objects.
[Mechanical properties](1)Ordinary blue steel strips:tensile strength бь≥58-70kg/mm2(MPa)≥580-700,elongation:δ5≥3-5%
(2)High quality blue steel strips:high intensity,good capability,bearing impact.tensile strength бь≥80-90kg/mm2(MPa)≥800-900,elongation:δ5≥5-10%

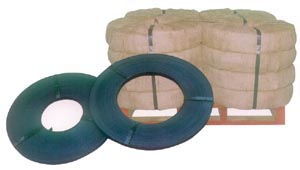

Sackcloth packing of blue strips

[Specification]
BWG28*1/2''、5/8''(0.36mm*12.7mm、16mm)
BWG27*1/2''、5/8''(0.40mm*12.7mm、16mm)
BWG25*1/2''、5/8''、3/4(0.50mm*12.7mm、16mm、19mm)
BWG24*5/8''、3/4''(0.60mm*16mm、19mm)
BWG23*5/8''、3/4''(0.65mm*16mm、19mm)
BWG22*3/4''、5/4''(0.70mm*19mm、32mm)
BWG21*3/4''、5/4''(0.80mm*19mm、32mm)
BWG20*3/4''、5/4''(0.90mm*19mm、32mm)


Tile edge compound paper packing of blue xtrips
The above specification,we can priduce as per customers'request.
[Packing]:2 or 3 small coils per bundle(inner diameter is 200mm,300mm),weight 50±1kg,20 bundles/pallet,each is about one metric ton.Inner is protect hummidity-proof wax paper.Medium is plastic film.Outer is sackcloth and compound paper packing.Delivered in Wooden pallets or iron pallets,we can pack as per customers' orders.
[Product performance standard]:YB/T025-92


Paintbaked Steel Packing Strips is made from ordinary carbon structured and high quality carbon structured steels via cold-rolled,It applys to pack the ware which is in the biggish humidity ground and outdoor long-time.
[Mechanical properties](1)Ordinary steel :tensile strength бь≥58-70kg/mm2(MPa)≥580-700,elongation:δ5≥3-5%
(2)High quality steel:tensile strengthбь≥80-90kg/mm2(MPa)≥800-900,elongation:δ5≥5-10%

[Specification]
BWG28*1/2''、5/8''(0.36mm*12.7mm、16mm)
BWG27*1/2''、5/8''(0.40mm*12.7mm、16mm)
BWG25*1/2''、5/8''、3/4(0.50mm*12.7mm、16mm、19mm)
BWG24*5/8''、3/4''(0.60mm*16mm、19mm)
BWG23*5/8''、3/4''(0.65mm*16mm、19mm)
BWG22*3/4''、5/4''(0.70mm*19mm、32mm)
BWG21*3/4''、5/4''(0.80mm*19mm、32mm)
BWG20*3/4''、5/4''(0.90mm*19mm、32mm)
The above specification,we can produce as per customers'request.
[Packing]The product include rope wound and ribbon wound(continuous,apply to pack machinery),net weight 45±2kg.Inner is protect humidity-proof wax paper.Medium is plastic film.Outer is sackcloth and compound paper packing.Delivered in wooden pallets or iron pallets.Rope wound steel strips:weight per pallet is 1 metric ton,ribbon wound steel strips:wigth per pallet is 0.9 metric ton.
[Product performance standard]QB/T01-2002.We can also manufacture as per customers' quality standard orders.
